494 nm Nominal |
| FWHM: |
70 nm Nominal |
| HP: |
459.0 +/- 5 nm, 529 +/- 6 nm |

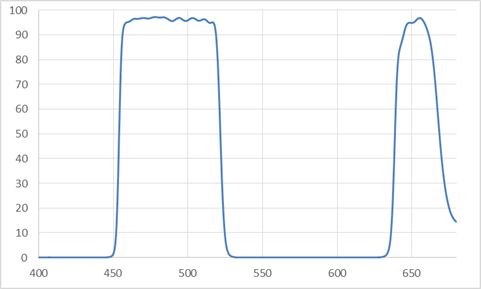

| Transmittance: |
486nm, 496nm, 501nm& 656.3nm >= 90% |
| Blocking |
T < 0.1%@ 400-436 nm |
| Blocking |
T < 0.01% 546-617 nm |
| Blocking |
T < 0.1% 546-630 nm |
| Reflectance (design goal) |
|
| 1 of the 2 surfaces |
= 1% Max @ 494 nm ** |
| |
|
| Optical Properties: |
|
| TWF: |
<1.5 Waves, prior to coating |
| Parallelism: |
< 30 arcsec. |
| |
|
| Dimensions: |
|
| Diameter: |
1.25 +/- 0.01" |
| Thickness: |
2.0 +/- 0.25 mm |
| Clear Aperture: |
0.86" Minimum |
| |
|
| Cosmetics: |
|
| Pinholes: |
No pinholes larger than 0.1 mm. Ignore pinholes smaller than 0.025 mm. No more than 5 pinholes between 0.1 and 0.025 mm within any 20 mm diameter area. |
| Surface Quality: |
60/40, 0.020" Max Chip |
| |
No Chamfer |
| |
|
| Operating Conditions: |
AOI=0°, Collimated Light |
| |
|
